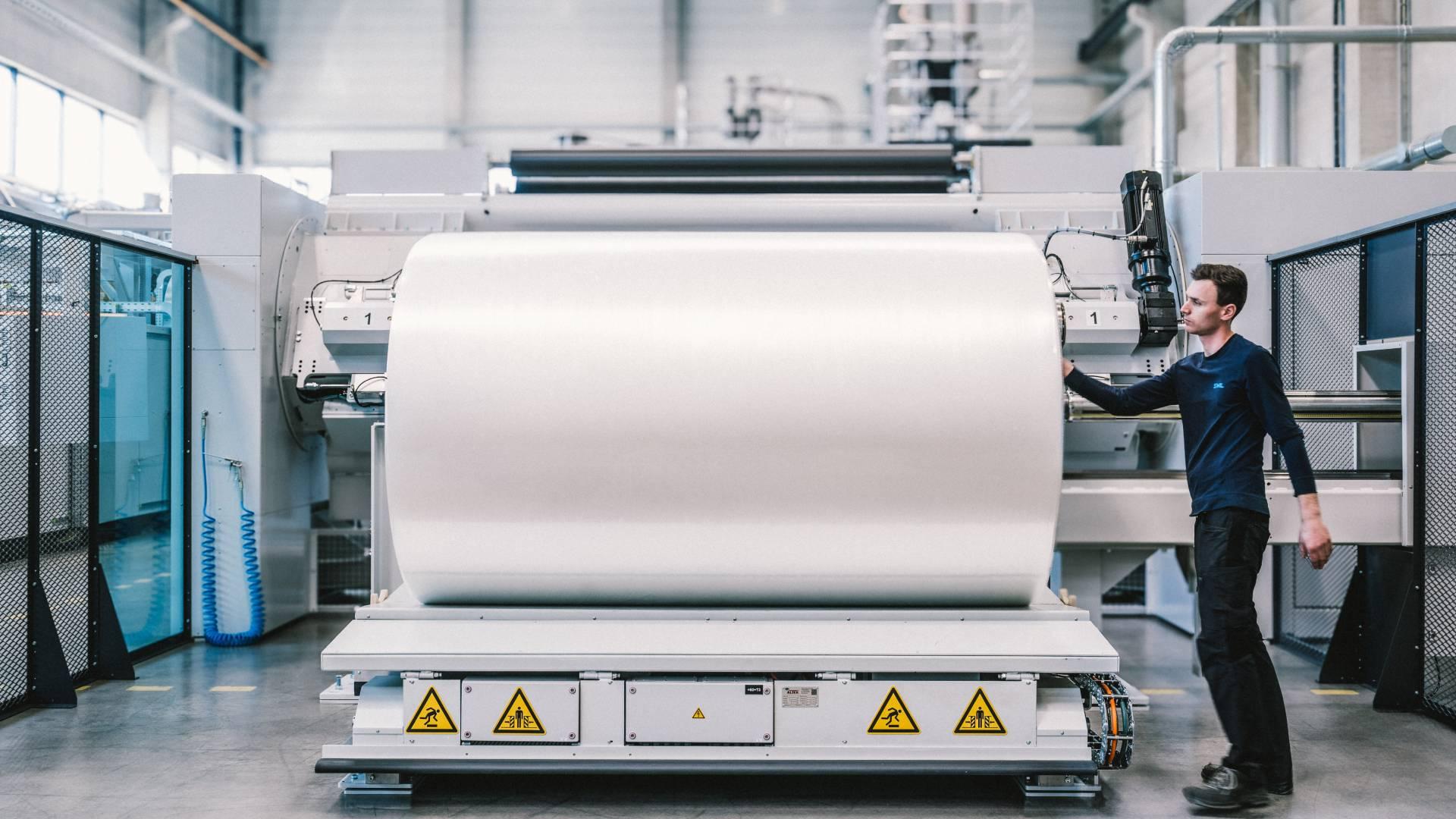

SML’s brand-new turret winder W1300 comes fully equipped with powerful technical features and functions. Its ability to produce jumbo rolls with a mechanical diameter of 1,500 mm offers numerous benefits to manufacturers in downstream processes.
“Our new W1300 turret winder was designed for the winding of CPP, CPE, mono-oriented and barrier films of absolute premium quality. With winding speeds of up to 450 m/min and end film widths from 2,400 to 3,900 mm, the new winder boasts everything necessary to ensure high-volume production,” Alexander Bruckmüller, the Product Manager at SML, confirms.
Efficiency in subsequent processes
Thanks to the winder’s large mechanical roll diameter of 1,500 mm, the running times of the individual rolls can be extended quite significantly. Extending the production runs primarily leads to a boost in efficiency in subsequent processes, such as printing or metallising. The following example demonstrates the tremendous amount of cast film contained in a jumbo roll of 1,500 mm: When cast film with a thickness of 25 µm is wound onto a roll with a diameter of 1,200 mm, this roll contains 45,000 running meters of film. A jumbo roll with a diameter of 1,500 mm has 70,000 running meters of the same film – this is an increase of more than 50 %!
Adjusting the hardness of the film roll
The W1300 winder can be adapted with ease to different production requirements. Two operational modes are available: Depending on the film, the winder can either work in gap mode or in contact mode. Before the film hits the contact roller, it runs over a continuously adjustable satellite roller to control the air intake between the individual film layers and to adjust the hardness of the film roll. Winding is possible either with or without winding shafts. The inlet section of the winder is prepared for the installation of a post cooling roller.
Roll change with auxiliary contact rollers
Two different cross-cutting units are available for the winder W1300: One is a full-width twisting knife for thinner films, and the second one is a flying knife for thicker films and oriented films. During a roll change, driven auxiliary contact rollers are engaged in order to keep the condition of the film at the roll in perfect condition up to the very last layer. A handling system is available both for shaftless winding and for winding with shafts. During shaftless operation, rolls can also be handled with an overhead crane.
Suitable for retrofits
The standalone nature of the winder makes it easy to install it on third-party cast film lines since it comes with its own control system and electrical components.
